| MOQ: | 100 pcs |
| 価格: | 2,000 - 5,000 USD per pc |
| 標準パッケージ: | Sea worthy Packing for Exporting with Iron Frame |
| 配達期間: | Within 90 Days after getting the down payment or L/C |
| 決済方法: | T/T, L/C at sight |
| 供給能力: | About 1,000 tons per month |

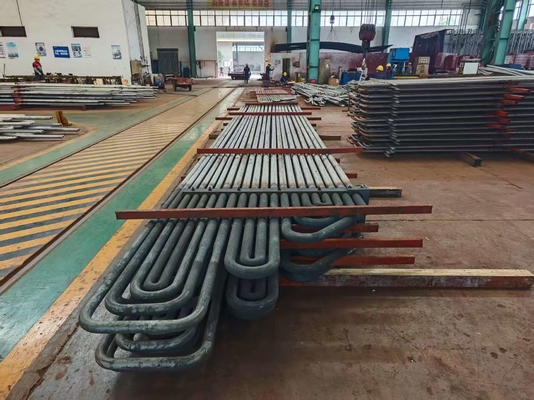

Customized Steel Superheater and Reheater Built to Last New Biomass Boilers
Why are superheaters important in power plants?
They increase steam temperature to improve cycle efficiency and prevent turbine blade condensation.
Product Display
Application
Use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Principle
• Principle of superheater is similar to steam generating tubes of boiler.
• The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.
|
|
