| MOQ: | 3トン |
| 価格: | 交渉可能 |
| 標準パッケージ: | 鉄フレームのパッキング |
| 配達期間: | Qty に依存する |
| 決済方法: | 契約後30%,出荷前70%の残高,またはL/Cの100% |
| 供給能力: | 1500トン/月 |
| Attribute | Value |
|---|---|
| Material | Stainless Steel, Carbon Steel, Alloy Steel |
| Heat Transfer | High Efficiency |
| Standard | ASME, ASTM, ISO9001, ISOEN3834 |
| Application | Power Plant |
| Design | Customized |
| Durability | High Durability |
| Color | Customized |
| Surface | painted |
It heats saturated steam to superheated steam, increasing thermal efficiency.

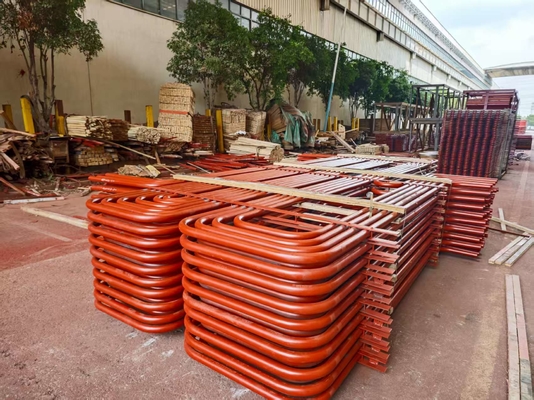

The boiler serpentine tube heat exchanger is a kind of heat exchanger widely used in the convection heating surface of boiler, mainly including economizer, superheater and reheater. The application of serpentine tube heat exchanger in power station boiler is mainly to ensure the stability and efficiency of boiler operation by using its efficient heat exchange performance. This heat exchanger can not only effectively heat or cool the working fluid, but also maintain good performance in high-pressure environments, which is an indispensable and important part of the power station boiler system.
Superheaters and reheaters are designed to handle high pressure, and they can be adjusted to meet specific requirements. Their main role? Raising the temperature of steam from boilers, which makes the heat exchange in turbines much more efficient.
The coils in these superheaters are made of stainless steel, carbon steel, or alloy steel--strong materials that have a long life. They're also resistant to damage, so they hold up even in tough environments.
These parts work really well in power plants, no matter if they use coal, biomass, or gas. They last a long time, so you won't have to repair them as often. That's a big advantage, especially for plants that depend on high-pressure steam systems.
What else makes them special? They can be customized, so they fit all sorts of setups. And because the coils can deal with harsh conditions, they're a reliable part of any power generation system. In the end, they're key to making turbines exchange heat efficiently--something no power plant can do without.
All the raw materials will be firstly made pipeline cutting. It is consisted of a series of bare oil (carbon steel, alloy steel, or durable heat steel) and header and other auxiliaries. Tubes Φ32, 38, 42 and so on, also as the request.
| Process | Welding |
| Structure | Horizontal or vertical |
| Material | Carbon steel, alloy steel |
| Tubes | φ32, 38, 42, etc. |
| Size | Customized |
| Brand | HTEG |
| Warranty | 18 months |
| Type | Advantages | Disadvantages | Supporting method |
|---|---|---|---|
| Pendant-type | 1. Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | Supported from above |
| Inverted-type | 1. Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal-type | 1. Proper drainage 2. Good structural rigidity. | 1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Product Packaging: The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.
Shipping: The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design, fabrication, installation, maintenance and replacement of boiler pressure parts.
|
|
