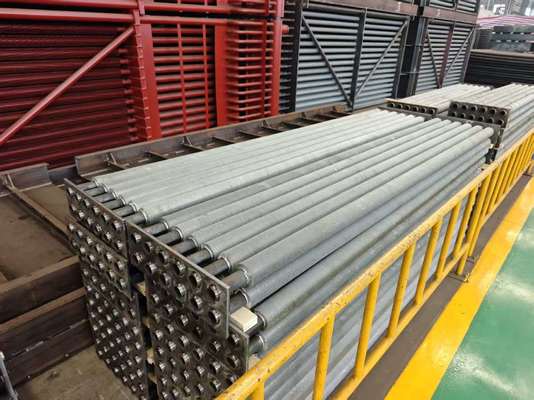

High Frequency Welding Spiral Fin Tube For Customized Heat Exchanger
Can Boiler Fin Tubes be customized according to boiler specifications?
Yes, Boiler Fin Tubes can be fully customized. Manufacturers can adjust parameters such as base tube diameter (e.g., 25mm/38mm), fin height (e.g., 10mm/15mm), fin thickness (e.g., 1mm/1.5mm), and material to match the boiler’s rated power, operating pressure, and heat transfer load.
Product Description
Spiral finned tubes are widely used in heat recovery of boiler economizer, air preheater, and waste heat boiler, as well as heat exchange equipment in chemical industry, pressure vessel and other fields. The capacity of units used in boilers has also increased from small to large, and their applications are increasing day by day. At present, many professional manufacturers in China can produce high frequency resistance welding, brazing spiral finned tubes, and the production equipment and technology of finned tubes have been developed, designed and manufactured from importation, digestion and absorption to self-development. The quality has reached the requirements of advanced foreign standards.
1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
2.Fins are used to increase the effective surface area of heat exchanger tubing.
3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
Details
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
